Food Multifuncational Carton Box Packaging Machine Applied For Pillows Packing, Bottle Packing, Blister Packing

1 Set
MOQ
$45,000.00(>=1 Sets)
가격
Food Multifuncational Carton Box Packaging Machine Applied For Pillows Packing, Bottle Packing, Blister Packing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Type: Multi-Function Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop
Weight (KG): 1250
Showroom Location: None
Condition: New
Function: FILLING, Wrapping, Labeling, Capping, COATING, Sealing, Gluing
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Tobacco
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V
Dimension(L*W*H): 2280*1050*2030mm
Warranty: 1 Year
Key Selling Points: Easy to Operate
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Bearing
Production Capacity: 150bags/min
Speed: 80-150Cartons/Min
Carton size: (50-120)*(25-50)*(25-50)mm
Weight: 1250kg
Compressed air: 0.6Mpa
Air consumption: 30-90L/Min
After Warranty Service: Available
Free Spare Parts: Available
Field Maintainance: Available
Inspection before delivery: Video of machine test
Online Technical Support: Yes
기본 정보
결제 및 배송 조건
Packaging Details: Vacuum package and used wooden case to seal
Supply Ability: 10 Set/Sets per Year
제품 설명
Product Overview

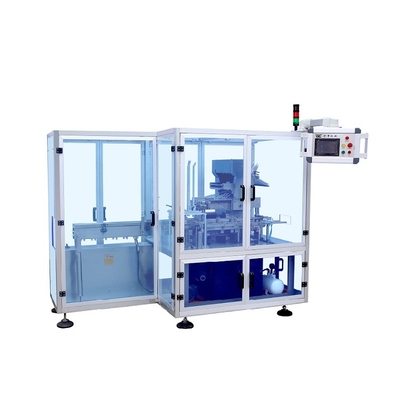

HDZ-150 Multifunctional automatic packaging machine

The equipment is mainly used for automatic packaging of bottled products. It is widely applied for packaging of simliar products in such industries as medicine, daily chemical industry, food & beverage,etc.
FEATURES AT A GLANCE
Features
1.It adopts varaible frequency speed control and PLC automatic control system
2.It adopts the human-machine interface operating system,which automaticlly displays the packaging speed, quantity and other performance parameters, and also displaysfault causes nad operation nad maintenance methods
3.The adjustmnet nad use of various specfications within the stipulated range can be realized in one machine
4. lt is provided with manual and automatic switching functions.
5.The use instructions folding and packaging functions can be completed synchronously
6.lt can be equipped with the hot melt adhesive machine
Bottled packaging machine
Blister packaging machine
Liquid injection packaging machine
PRODUCT SPECIFICATIONS
No
Item
Data
1
Speed
80-150Cartons/Min
2
Carton size
(50-120)*(25-50)*(25-50)mm
3
Voltage
380V/50Hz
4
Power
1.5KW
5
Dimensions
2280*1050*2030mm
6
Weight
1250KG
7
Compressed air
0.6Mpa
8
Air consumption
30-90L/Min
PRODUCT CONFIGURATION
Injection blisters feeding
Blisters feeding
Bottles feeding
